Self-Cleaning
Suction Strainer
The

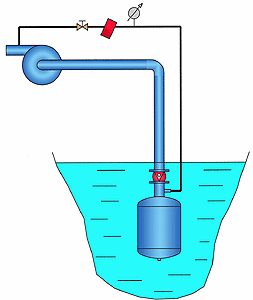

self-cleaning suction strainer is designed to protect pumps from
becoming clogged by debris, trash and solid dirt. It is connected
to the pump intake and submerged in the water source (river, lake,
etc).
Principle
of Operation
As
the pumped water flows through the strainer, all the debris is
trapped on the screen, protecting the pump from clogging
or damage, resulting in increased pump efficiency and reducing
maintenance costs.

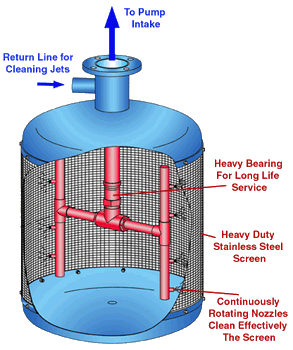

The screen is kept clean by the continuously rotating jets (using
pump pressure through the return line), that sweep away the debris
from the screen.
Models
|
Model
|
Inlet
/ Outlet Diameters
|
Max
Recommended Flow Rate (up to)
|
|
inch
|
mm
|
1200
Micron
|
2500
Micron
|
|
m3/h
|
U.S.
gpm
|
m3/h
|
U.S.
gpm
|
|
18104
|
4
|
100
|
80
|
352
|
100
|
440
|
|
18106
|
6
|
150
|
180
|
792
|
230
|
1012
|
|
18108
|
8
|
200
|
300
|
1320
|
380
|
1673
|
|
18110
|
10
|
250
|
420
|
1849
|
550
|
2421
|
|
18112
|
12
|
300
|
600
|
2641
|
750
|
3302
|
|
18114
|
14
|
350
|
800
|
3522
|
1000
|
4402
|
|
18116
|
16
|
400
|
1000
|
4402
|
1200
|
5283
|
|
